PRODUCT SELECTION
Steel Cord Conveyor Belts
Steel-cord reinforcement for high-tension and long-distance bulk conveying. Selection also depends on splice design, pulley diameters and the conveyor layout.
CONSTRUCTION & APPLICATION
Match the belt to the duty.
Longitudinal steel cords embedded in core rubber, protected by upper and lower rubber covers.
- Long-distance bulk conveying
- Heavy-duty mining
- High-tension conveying
CATALOGUE REFERENCE
Specification starting points
| Item | Details |
|---|---|
| Reinforcement | Longitudinal steel cords |
| Catalogue rating series | ST630–ST5400 (listed standard-belt table) |
| Cover examples | 5+5 mm through 8+8 mm, depending on rating |
| Width examples | 800–2,200 mm in the cord-count table; not every width/rating combination is listed |
| Splice and pulley selection | Confirm against the actual conveyor design |

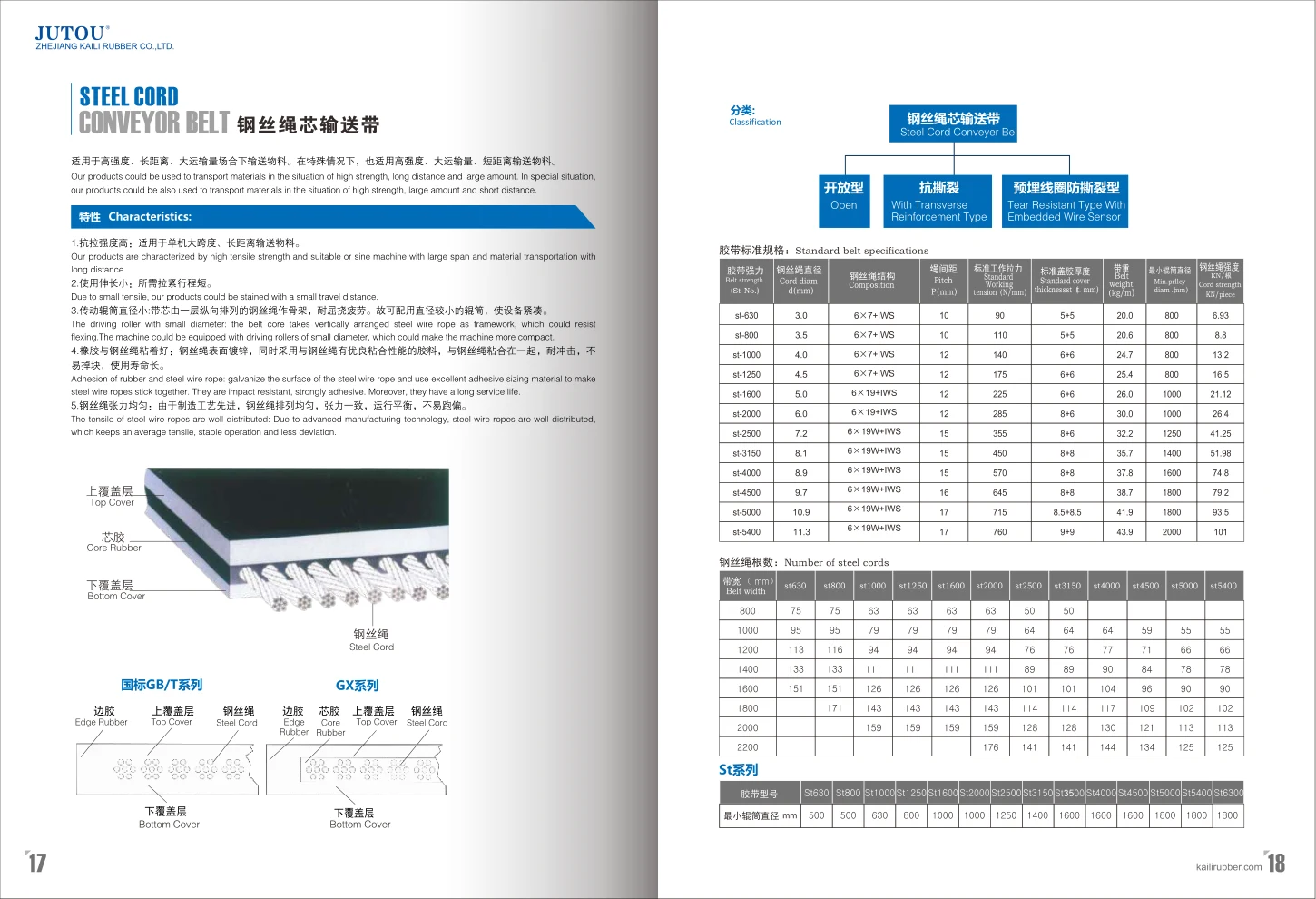

Source: supplied catalogue, printed page 17–18. Listed examples are not a guarantee of every combination. Confirm current availability, tolerances and acceptance criteria in the quotation.
What to send for a quotation
ST rating, width, cover thickness, length, pulley diameters and splice requirements.
Include quantity, destination and required delivery terms. If specifications are unknown, attach an existing belt marking or a drawing.
Frequently asked
Can an ST belt be selected by width alone?
No. The tension rating, cord construction, cover compound, pulley sizes and splice arrangement must be checked together. Send the existing belt specification or conveyor design.
